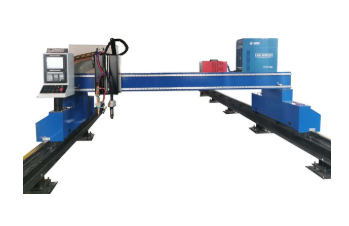

4012 Plasma Cutting Machine with 200A Power Source
Product Introduction:
LM40120Ā plasma CNC cutting machine, suitable for medium and thick plateĀ cutting, using rail-mounted installation, bilateral drive, effective cutting area, suitable forĀ medium and heavy plate cutting, separation of bed and material frame, can prevent heavy plate from affecting bed Body accuracy. The cutting length can be extended as needed, and the cutting effective width can be up to 2.2 meters, which can complete the cutting of a whole large plate at a time, saving the loading and unloading time and improving the efficiency.
Product feature?
1. Frame adopts carbon steel welding structure and overall annealing treatment with high precision and small inertia XYZ axisĀ is with high precision processing to prevent deformation.
2.Ā Transmission structure is high precision rack and special reducer, Cable made by the German materials to ensure running accuracy.
3. The drive system adopts USA chip control, double drive, Panasonic Servo motors. Inovance Servo motor or precision stepper motor is also available to providing AC power with big torque to ensure running smoothly under the high speed.
4. Adopts high precision controller, with English and Chinese language. And the machine also equip with Automatic THC.
Technical Parameters?
| Model | LM40120HD | |
| Cutting Method | Plasma | Flaming |
| Machine Size | 4650*12000mm | |
| Cutting Material | All Metal Sheet Mild /high carbon steel | |
| Cutting Thickness | 6-200mm(According to Plasma source) | |
| Lifting Travel | ā¤170mm | |
| Max Travel Speed | 8000mm/min | |
| Accuracy | ā¤0.05mm | |
| Control System | FangLing F2300B Controller | |
| Electric Parts | France Schneider | |
| Auto Height Control | HYD THC | |
| Motor | Panasonic servo motor | |
| Transmission | Rack and pinion drive | |
| X, Y axis | High Quality Rack & Pinion and 24kg linear rail | |
| Cutting Gas | Compressed air | Oxygen + Ethyne(Propane) |
| Gas Pressure | 0.4-0.7MPa |
Oxygen:0.5MPa Fuel gas:0.1MPa |
| Programming software | AutoCAD(all dxf,dwg,CAM,NC files) | |
| Nesting software | StarCam |
Applicable materials:
Suitable for medium and thick plate cutting, maximum cutting thickness: carbon steel plasma (with power supply) 0.5-16mm flame 6-200mm
Galvanized sheet, stainless steel, aluminum sheet, copper plate and other metals 0.5-14mm (plasma cutting)
Ā Ā
- Compulsory delivery, setup and minimal trainingĀ of the machine at additional costs to the customer - within South Africa only.
- Delivery Time For Gauteng And Surrounding Provinces 3-5 Weeks Lead Time
- Delivery Time For Northern, Eastern & Western Cape 5-8 Weeks Lead Time
- The machine doesn't include the Oxygen for cutting, please contact us for a special quote.
- Images are for illustrative purposes only.
IF NO STOCK IS AVAILABLE LOCALLY
LEAD TIME WILL BE 18-24 WEEKS/3-4 MONTHS
PLEASE NOTE THAT THERE MIGHT BE A PRICE DIFFERENCE DEPENDING ON THE RAND/DOLLAR EXCHANGE RATE AT THE TIME OF ORDER
