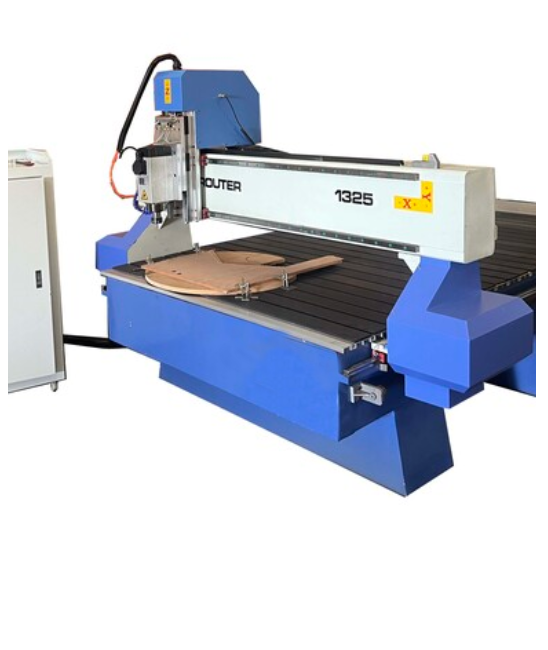

Industrial CNC Cutting Machine PS1325
Technical Parameters
|
X,Y,Z Working Area |
1300x2500x200mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Aluminum T-slot Table |
| Frame | Welded structure |
| X, Y axis transmission | Rack and Pinion gear |
| Z transmission | Ball Screw |
| Rail Configuration | 20 square rail |
| Max. Traveling Rate | 20000mm/min |
| Max. Working Speed | 10000mm/min |
| Spindle Power | 4.5KW air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220V/50HZ/Single phase |
| Command Language | G Code,u00, mmg, PLT, HPG |
| Operating System | DSP control System |
| Computer Interface | USB |
| Software Compatibility | UcanCam V12 |
| N.W. | 1200Kg |
Application:
It is mainly used in acrylic, PVC board, MDF board and other boards processing, wave board production, various types of artificial board shaped cutting, LED, neon channel, literally cutting, light box moulding.
It is mainly used in acrylic, PVC board, MDF board and other boards processing, wave board production, various types of artificial board shaped cutting, LED, neon channel, literally cutting, light box moulding.
IF NO STOCK IS AVAILABLE LOCALLY
LEAD TIME WILL BE 18-24 WEEKS/3-4 MONTHS
PLEASE NOTE THAT THERE MIGHT BE A PRICE DIFFERENCE DEPENDING ON THE RAND/DOLLAR EXCHANGE RATE AT THE TIME OF ORDER
