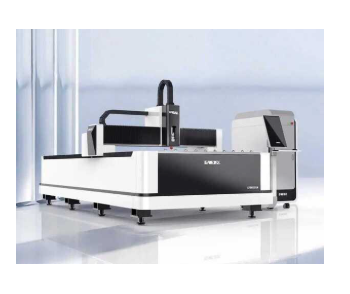

LF3015LN G-Weike Fiber Laser Machine
Technical Parameters
| Machine Model | LF3015LN |
| laser power | 3000W |
| Dimensions | 4520*3030*1950mm |
| working area | 3050*1530mm |
| Repeat positioning accuracy | Ā±0.03mm/m |
| X/Y Axis positioning accuracy | Ā±0.05mm/m |
| Maximum Speed | 80m/min |
| Maximum Acceleration | 1.5G |
Dual Bus Servo Motor Dynamic Performance Improved by 30%
The whole machine is equipped with dual bus motors. The whole machine has a dry running speed of 120m/min and an acceleration of 1.5G, achieving leading dynamic performance.
Modular tabletop
Ease of transportation while reducing later maintenance costs.
Aviation Aluminum Beam
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Light weight, high strength.
Air pressure DA correction
The outlet air pressure can accurately reach the set value.
IF NO STOCK IS AVAILABLE LOCALLY
LEAD TIME WILL BE 18-24 WEEKS/3-4 MONTHS
PLEASE NOTE THAT THERE MIGHT BE A PRICE DIFFERENCE DEPENDING ON THE RAND/DOLLAR EXCHANGE RATE AT THE TIME OF ORDER
