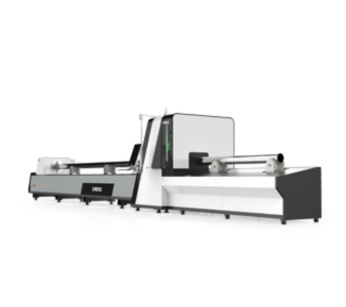

GKS-6024T2 G-Weike Fiber Laser Machine
Technical Parameters
| Machine Model | GKS-6024T2 |
| laser power | 1500W 3000W |
| Dimensions | 11900*1580*2260mm |
| working area | Hold diameter: Ī¦20mm-Ī¦300mm |
| Repeat positioning accuracy | Ā±0.02mm/m |
| Max speed | 1.5G |
| Max acceleration | Ā±0.02mm/m |
| Voltage and frequency | 380V/50Hz/60Hz |
Autofocus Laser Cutting Head
Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.
Clamp Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting.
Wireless Controller
It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation. Simple operation, can be operate to control machine working such as cutting, piercing, moving, calibrating, urgently stopping and so on.
Machine Advantage
Automatic Stroke Protection
Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk
Intelligent Alarm System
It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment.
Industry Applications
Professional tube fiber laser cutting machine, used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube
IF NO STOCK IS AVAILABLE LOCALLY
LEAD TIME WILL BE 18-24 WEEKS/3-4 MONTHS
PLEASE NOTE THAT THERE MIGHT BE A PRICE DIFFERENCE DEPENDING ON THE RAND/DOLLAR EXCHANGE RATE AT THE TIME OF ORDER
