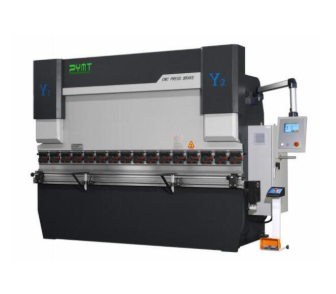

125T/3200 CNC Hydraulic Press Brake Machine
CNC Press Brake Machine 125T/3200 with CT12 Controller 4+1 Axis
Main technicalĀ parametersļ¼
| No. | Item | Parameter | Unite | Marks |
| 1 | BendingĀ Pressure | 1250 | KN | |
| 2 | Bending Width | 3200 | mm | |
| 3 | Slider Stroke | 200 | mm | |
| 4 | Max. openingĀ Height | 450 | mm | |
| 5 | Vertical ColumnĀ Distance | 2655 | mm | |
| 6 | ThroatĀ Depth | 350 | mm | |
| 7 | Y-axisĀ Downward Speed(NonĀ load) | 110 | mm/s | |
| 8 | Y-axisĀ Back Stroke Speed | 100 | mm/s | |
| 9 | Working speed | 10 | mm/s | |
| 10 | MainĀ motor | 11 | Kw | |
| 11 | CNC System | CT12 | Switzerland ,Cyb TouchĀ 12 | |
| 12 | Control axis | 4+1 | Y1,Y2,X,R+V | |
| 13 | X-axisĀ Max.Ā Distance | 500 | mm | |
| 14 | X-axisĀ Max.Ā Distance Speed | 200 | mm/s | |
| 15 | X-axisĀ positioning accuracy | Ā±0.05 | mm |
Ā
LEAD TIME WILL BE 18-24 WEEKS/3-4 MONTHS
PLEASE NOTE THAT THERE MIGHT BE A PRICE DIFFERENCE DEPENDING ON THE RAND/DOLLAR EXCHANGE RATE AT THE TIME OF ORDER
