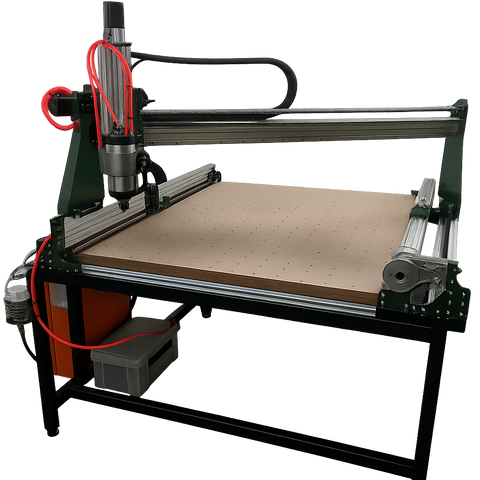

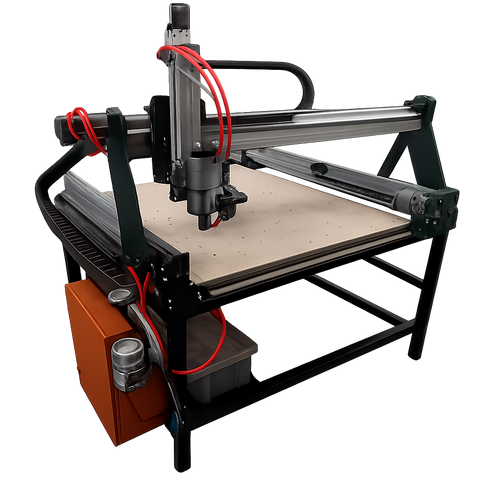

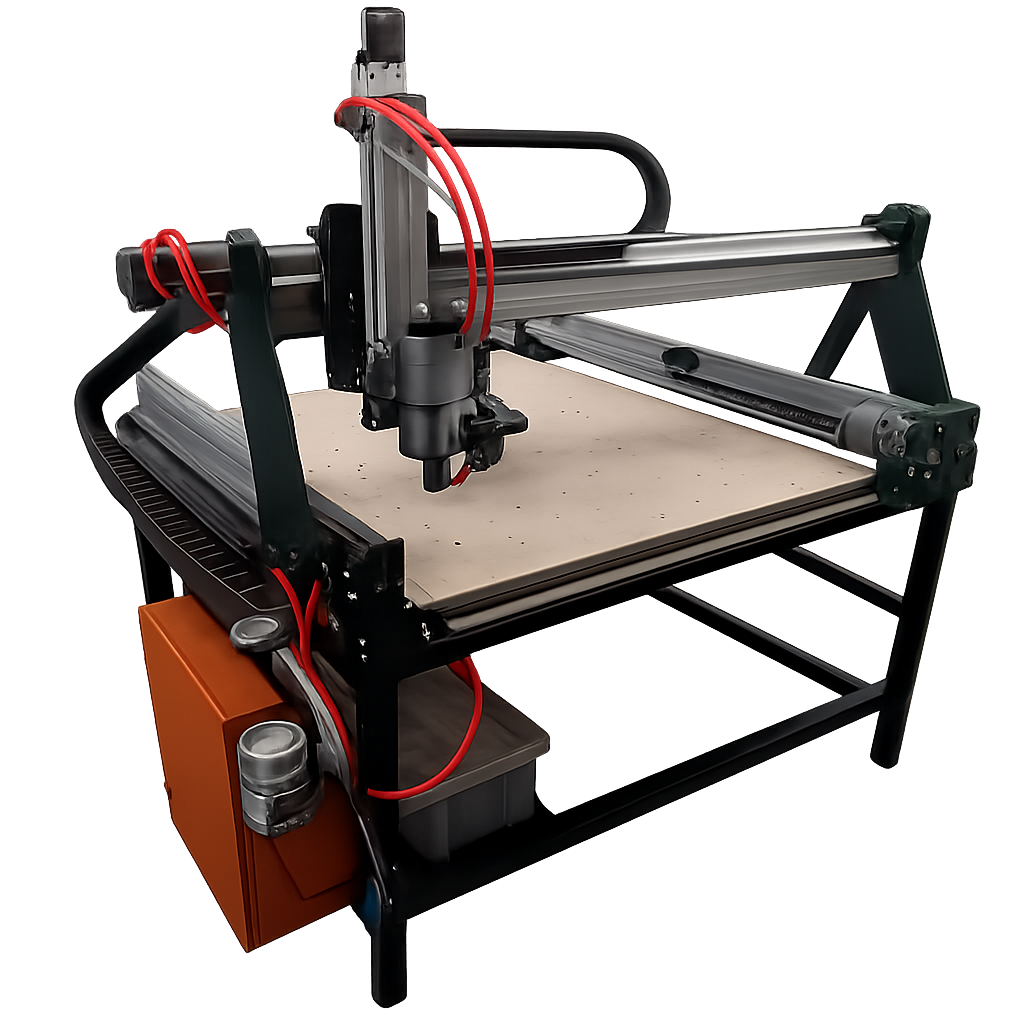

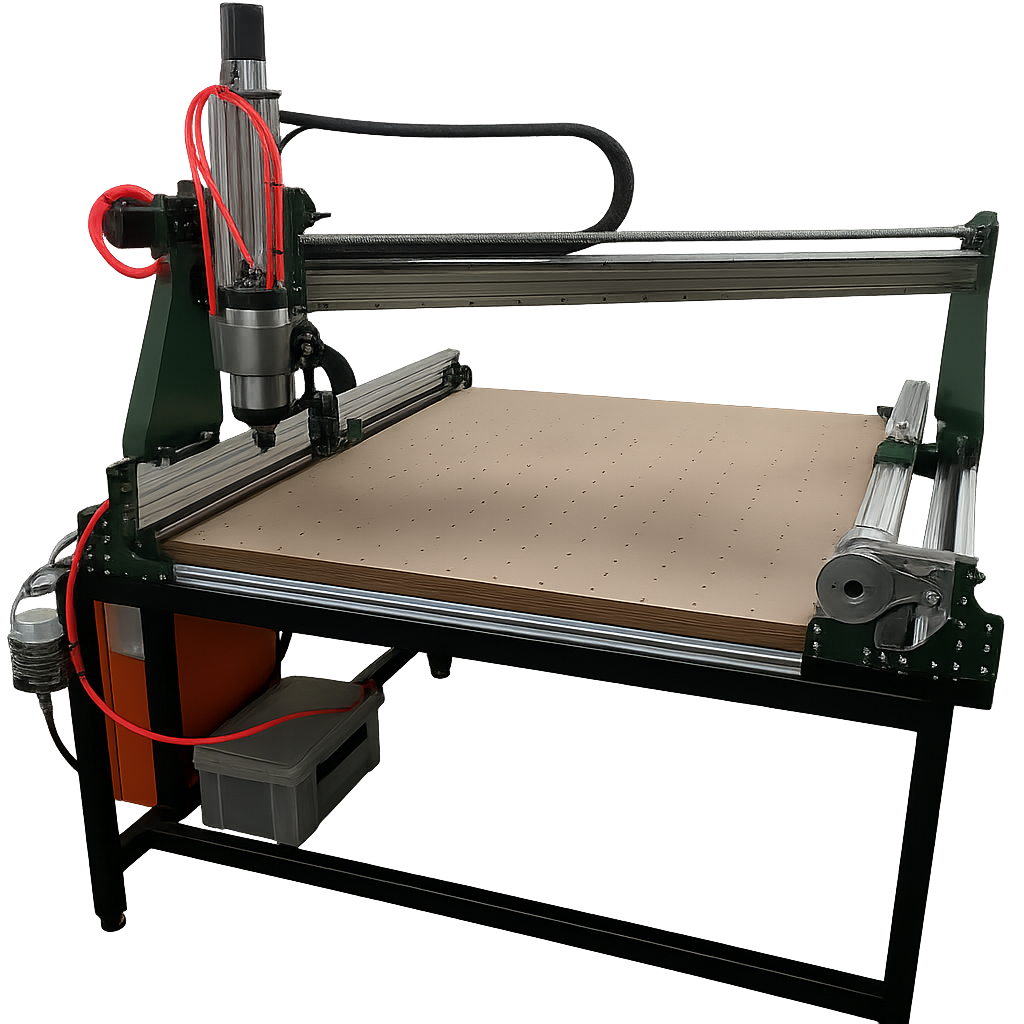

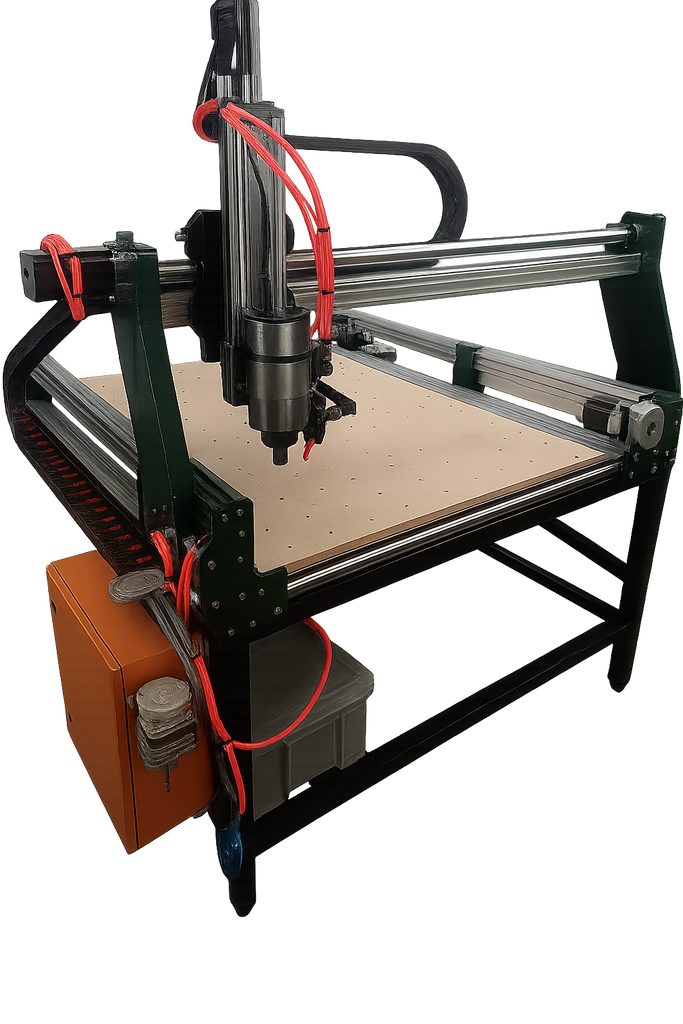

AXYZ2030B CNC Machine - MASSO Controller

2x3m CNC Machine Specs:

This machine is part of our production range, this machine is perfect for high work load and is perfect to cut material for extremely long hours. This Machine is perfect to cut aluminium, perspex, wood and other materials with high accuracy. Very good reliability with the DDCS Stand Alone Controller combination with it's ridged frame and aluminium extrusions. Including seven limit switches A+, A-, Y+, Y-, X+, X- and Z+ for the use as limits, homing and soft limits. With many upgradable options, electronically or mechanically like servo motors, 1.5kw or 2.2kw air cooled or water cooled spindle kits or lasers, you are in the front seat to get your ideal CNC Machine built to your requirements.

2x3m CNC Machine Features:

Footprint: 2020mm x 2985mm at the base *Stock size measured from base

Work Area: 1740mm x 2740mm x 100mm *Stock size

Cutting depth 50mm Depending on type of bit used.

Open ends allow pass through of longer materials.

All aluminium frame and 3mm steel front and back panels

5 cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm)

Collets 3mm, 6mm

Electronics controller box with 3m LAN cable connection (cable included)

Full HGR15 linear rail management with SFU16 ball screws for X & Y axis with cable drag chains

Lead screw and HGR15 linear rail management for Z axis

Makita RT0700C 700w Router (12 month warranty from any Makita dealer) 6 months warranty

Manual Speed Controlled between 12 000 RPM – 30 000 RPM.

Maximum jog rate is 2000 - 6000 mm/min

Maximum feed rate is 1000 - 6000 mm/min

Auto homing and auto squaring

*The machine comes with a MDF wasteboard including fastening clamps.

Requirements:

Personal computer or Laptop running Windows 7, 8 or 10.

LAN port on computer

Free Downloadable Software & Free Downloadable Designing Program that's provided with the machine

Mechanical Specifications:

3x Nema 34 closed loop stepper motors 40kg.cm

1x Nema 23 closed loop stepper motors 30kg.cm

4x Closed Loop Motion Controllers

HGR15 linear rails and SFU1605 ball screws on X & Y axis.

Dual motors on Y axis.

T8 8mm lead screw and HGR15 linear rails on Z axis

7x Proximity Sensors - 2 on each axis (A+, A-, Y+, Y-, X+, X-, Z+)

Configured resolution: less than 0.1mm

65mm Router Spindle Mount (suitable for Makita RT0700C).

Electronics Specifications:

4 Axis Stepper Motor Driver Controller Board - MASSO Controller with License Key.

12V 2.4A 100W Power Supply

24V 4.5A 100W

230v AC Power Socket - Power Cable Provided

Emergency Stop Button

LAN Connection - LAN Cable Provided

All connecting fittings and cables

MASSO G3

Powerful. Stable. Guaranteed.

MASSO G3 is the most stable, reliable and easy-to-use CNC controller money can buy. Escape the reliability issues of PC-based controllers, which are vulnerable to external design flaws, incompatible software updates and viruses. No need to worry about installing drivers or motion cards, just wire the MASSO to your motor drives and enter calibration values to start machining.

With MASSO G3 you get:

Fully integrated hardware and software specifically designed to run CNC machines independently of a PC.

Lathe, Mill, Router, Plasma or WaterJet machine control with up to 5-axis control.

Built-in Wi-Fi for PC connectivity via MASSO-Link software. Remotely monitor machine status and send g-code files.

Simple, easy-to-use screen layout.

Tool path display so you can see and position your job in real time.

Four USB ports to directly connect keyboard, mouse, touchscreen and pen drive without the need for a USB hub.

Direct spindle control and MPG handwheel dial support.

Compulsory delivery, setup and minimal training of the machine at additional costs to the customer - within South Africa only.
Delivery Time For Gauteng And Surrounding Provinces 3-5 Weeks Lead Time
Delivery Time For Northern, Eastern & Western Cape 5-8 Weeks Lead Time

UPGRADES:

1.5kW Air Cooled Spindle Kit Specification:

1.5kW Air cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD and 4 additional collets (2mm, 3mm, 4mm & 6mm).

Diameter: 65mm
Power: 1.5kW
Current: 7A
Voltage: 220V
Frequency: 0-400Hz
Speed: 10-24000rpm
Collet Size: ER11
Cooling: Air Cooled
Runout: 0.003mm - 0.005mm
Bearings: C7002 x 2, C7002 x 2
Collet size in spindle: 1/8' (3.175mm)
Additional collet sizes: 2mm, 3mm, 4mm & 6mm

VFD Specification:

Power: 1.5KW
Input Voltage: 220V AC (Single Phase)
Output Voltage: 220V
Output Current: 7A
Input Frequency:50-60Hz
Output Frequency:0-400Hz
Input phase: Single phase
Output phase: 3 phase
Size: 170 x 125 x 163mm
Control: By hand via built in control panel or via digital signal from controller board

1.5kW Water Cooled Spindle Kit Specification:

1.5kW Water-cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD, 4 additional collets (2mm, 3mm, 4mm & 6mm), water pump and 6m of water tubing.

Diameter: 65mm
Power: 1.5kW
Current: 7A
Voltage: 220V
Frequency: 0-400Hz
Speed: 10-24000rpm
Collet Size: ER11
Cooling: Water Cooled
Runout: 0.003mm - 0.005mm
Bearings: C7002 x 2, C7002 x 2
Collet size in spindle: 1/8' (3.175mm)
Additional collet sizes: 2mm, 3mm, 4mm & 6mm

VFD Specification:

Power: 1.5KW
Input Voltage: 220V AC (Single Phase)
Output Voltage: 220V
Output Current: 7A
Input Frequency:50-60Hz
Output Frequency:0-400Hz
Input phase: Single phase
Output phase: 3 phase
Size: 170 x 125 x 163mm
Control: By hand via built in control panel or via digital signal from controller board

2.2kW Air Cooled Spindle Kit Specification:

2.2kW Air cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD and 4 additional collets (3mm, 4mm, 6mm & 8mm).

Diameter: 80mm
Power: 2.2KW
Current: 10A
Voltage: 220V
Frequency: 0-400Hz
Speed: 10-24000rpm
Collet Size: ER20
Cooling: Air Cooled
Runout: 0.003mm - 0.005mm
Bearings: C7002 x 2, C7005 x 2
Collet size in spindle: 1/8' (3.175mm)
Additional collet sizes: 3mm, 4mm, 6mm & 8mm

VFD Specification:

Power: 2.2KW
Input Voltage: 220V AC (Single Phase)
Output Voltage: 220V
Output Current: 10A
Input Frequency:50-60Hz
Output Frequency:0-400Hz
Input phase: Single phase
Output phase: 3 phase
Size: 170 x 125 x 163mm
Control: By hand via built in control panel or via digital signal from controller board

2.2kW Water Cooled Spindle Kit Specification:

2.2kW Water-cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD, 4 additional collets (3mm, 4mm, 6mm & 8mm), water pump and 6m of water tubing.

Diameter: 80mm
Power: 2.2KW
Current: 10A
Voltage: 220V
Frequency: 0-400Hz
Speed: 10-24000rpm
Collet Size: ER20
Cooling: Air Cooled
Runout: 0.003mm - 0.005mm
Bearings: C7002 x 2, C7005 x 2
Collet size in spindle: 1/8' (3.175mm)
Additional collet sizes: 3mm, 4mm, 6mm & 8mm

VFD Specification:

Power: 2.2KW
Input Voltage: 220V AC (Single Phase)
Output Voltage: 220V
Output Current: 10A
Input Frequency:50-60Hz
Output Frequency:0-400Hz
Input phase: Single phase
Output phase: 3 phase
Size: 170 x 125 x 163mm
Control: By hand via built in control panel or via digital signal from controller board

Table Specifications:

50x50x2mm Square Tubing
Height of table: 900mm
Table painted black
Adjustable feet

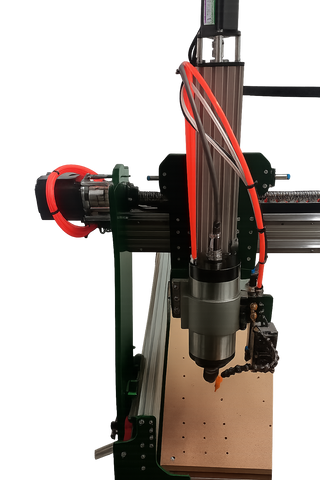

Please note the pictures are for illustrative purposes only, final product may vary depending on the type and length of the machine selected
