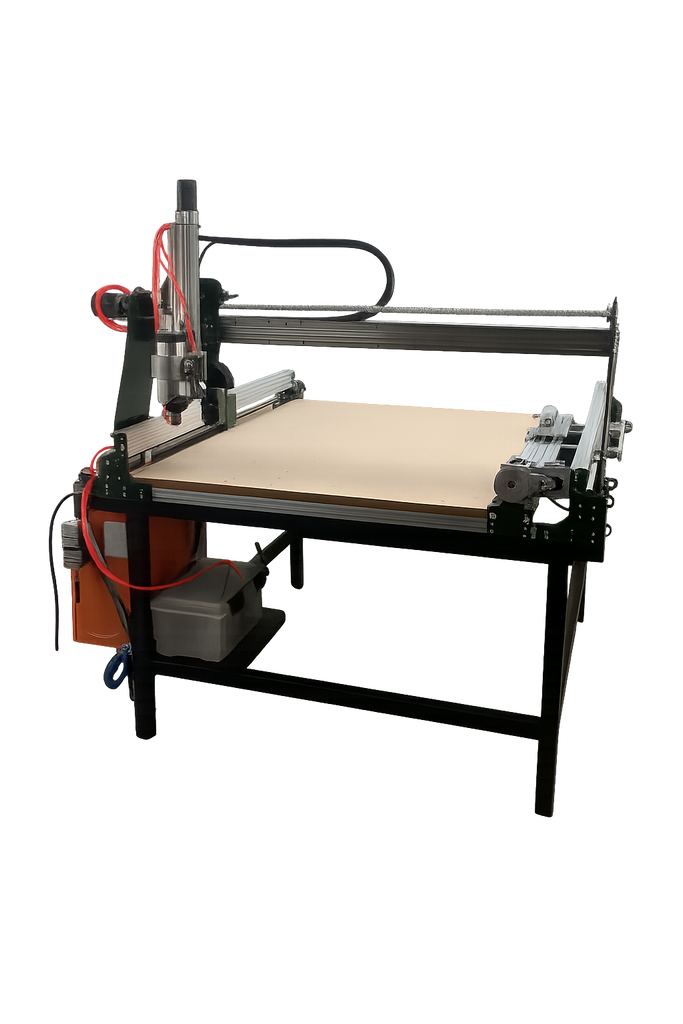

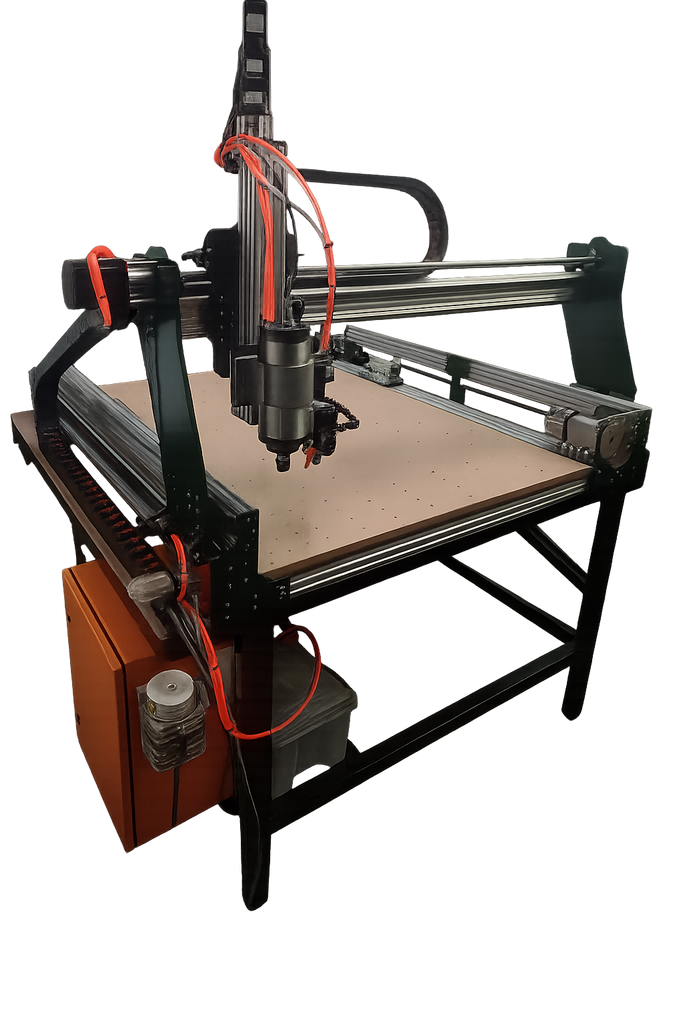

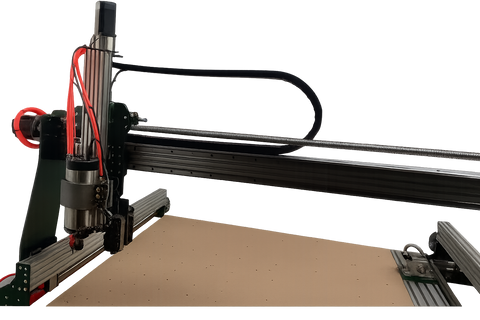

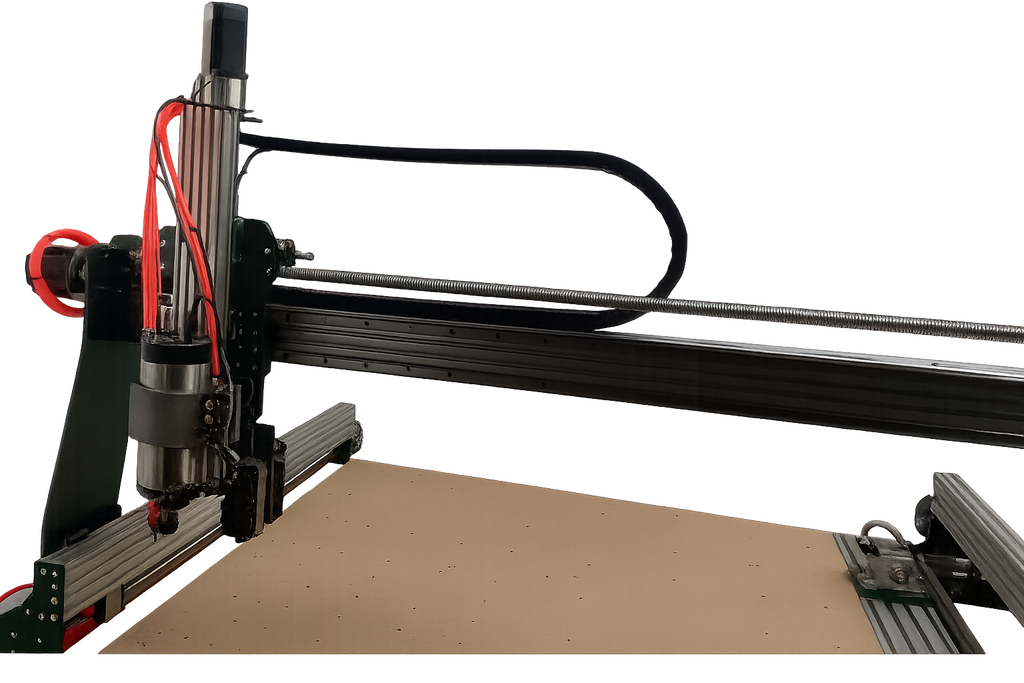

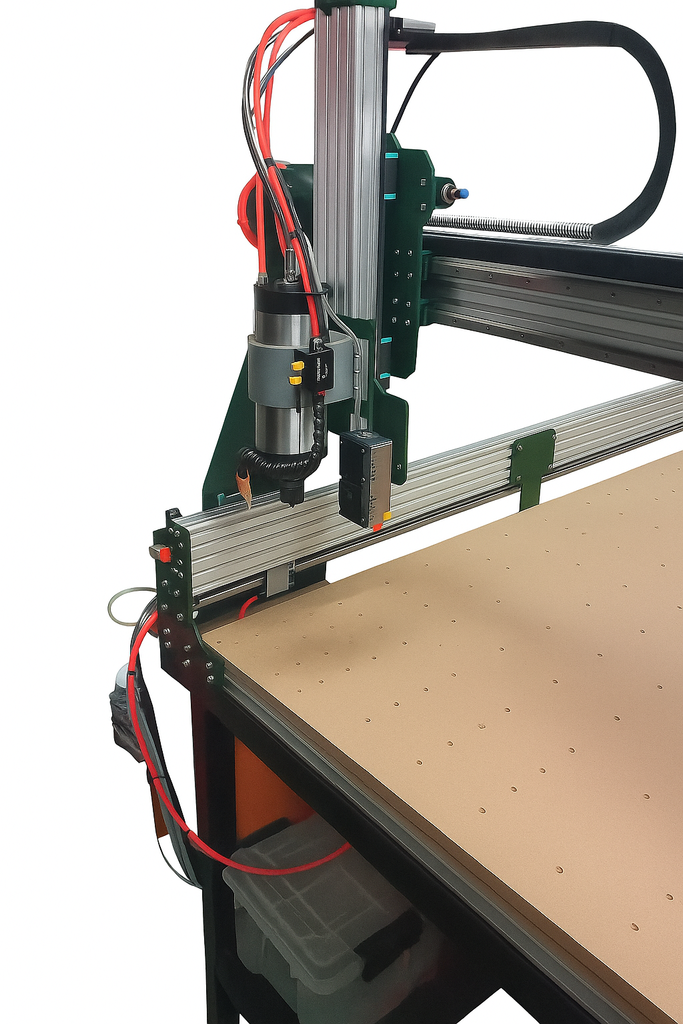

AXYZ1515B CNC Machine - Mach3 Controller
1.5x1.5m CNC Machine Specs:
This machine is part of our production range, this machine is perfect for high work load and is perfect to cut material for extremely long hours. This Machine is perfect to cut aluminium, perspex, wood and other materials with high accuracy. Very good reliability with the Mach3 Controller combination with it's ridged frame and aluminium extrusions. Including seven limit switches A+, A-, Y+, Y-, X+, X- and Z+ for the use as limits, homing and soft limits. With many upgradable options, electronically or mechanically like 1.5kw, 2.2kw, 3kw air cooled or water cooled spindle kits, 3kw water cooled automatic tool changer spindle kits or you can add a table for the machine, you are in the front seat to get your ideal CNC Machine built to your requirements.
1.5x1.5m CNC Machine Features:
Footprint: 1520mm x 1480mm at the base *Stock size measured from base
Work Area: 1240mm x 1240mm x 100mm *Stock size
Cutting depth 50mm Depending on type of bit used.
Open ends allow pass through of longer materials.
All aluminium frame and 3mm steel front and back panels
5 cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm)
Collets 3mm, 6mm
Electronics controller box with 3m LAN cable connection (cable included)
Full HGR 15 linear rail management with SFU20 ball screws for X & Y axis with cable drag chains
Lead screw and HGR15 linear rail management for Z axis
Makita RT0700C 700w Router (12 month warranty from any Makita dealer) 6 months warranty
Manual Speed Controlled between 12 000 RPM – 30 000 RPM.
Maximum jog rate is 2000 mm/min
Maximum feed rate is 1000 mm/min
Auto homing and auto squaring
*The machine comes with a MDF wasteboard including fastening clamps.
*Please note when adding UPGRADES to your order that the first item - the machine must be selected, without the machine the upgrade options and prices will not be valid.
Requirements:
Personal computer or Laptop running Windows 7, 8 or 10.
USB port on computer
Controlling Software:
Mach3
Additional Designing Software:
Vectric Aspire
Mechanical Specifications:
1x Nema 23 closed loop stepper motors 2.2Nm
3x Nema 34 closed loop stepper motors 8.5Nm
4x Closed Loop Motion Controllers
HGR15 linear rails and SFU2010 ball screws on X & Y axis.
Dual motors on Y axis.
T8 8mm lead screw and HGR15 linear rails on Z axis
7x Proximity Sensors - 2 on each axis (A+, A-, Y+, Y-, X+, X-, Z+)
Configured resolution: less than 0.1mm
65mm Router Spindle Mount (suitable for Makita RT0700C).
Electronics Specifications:
4 Axis Stepper Motor Driver Controller Board - Mach3 Controller Board with Mach3 License Key.
24V 10A 250W Power Supply
230v AC Power Socket - Power Cable Provided
Emergency Stop Button
LAN Connection - LAN Cable Provided
All connecting fittings and cables
- Compulsory delivery, setup and minimal training of the machine at additional costs to the customer - within South Africa only.
- Delivery Time For Gauteng And Surrounding Provinces 3-5 Weeks Lead Time
- Delivery Time For Northern, Eastern & Western Cape 5-8 Weeks Lead Time
The machine can be upgraded with the following: 1.5kw Air Cooled Spindle Kit | 1.5kw Water Cooled Spindle Kit | 2.2kw Air Cooled Spindle Kit | 2.2kw Water Cooled Spindle Kit | 3kw Air Cooled Spindle Kit | 3kw Water Cooled Spindle Kit | 3kw Water Cooled ATC Spindle Kit | Table
Upgrades includes the machines price with the upgrade item/additional item.
UPGRADES:
1.5kW Air Cooled Spindle Kit Specification:
1.5kW Air cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD and 4 additional collets (2mm, 3mm, 4mm & 6mm).
- Diameter: 65mm
- Power: 1.5kW
- Current: 7A
- Voltage: 220V
- Frequency: 0-400Hz
- Speed: 10-24000rpm
- Collet Size: ER11
- Cooling: Air Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7002 x 2, C7002 x 2
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 2mm, 3mm, 4mm & 6mm
- Power: 1.5KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 7A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 170 x 125 x 163mm
- Control: By hand via built in control panel or via digital signal from controller board
1.5kW Water Cooled Spindle Kit Specification:
1.5kW Water-cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD, 4 additional collets (2mm, 3mm, 4mm & 6mm), water pump and 6m of water tubing.
- Diameter: 65mm
- Power: 1.5kW
- Current: 7A
- Voltage: 220V
- Frequency: 0-400Hz
- Speed: 10-24000rpm
- Collet Size: ER11
- Cooling: Water Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7002 x 2, C7002 x 2
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 2mm, 3mm, 4mm & 6mm
- Power: 1.5KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 7A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 170 x 125 x 163mm
- Control: By hand via built in control panel or via digital signal from controller board
2.2kW Air Cooled Spindle Kit Specification:
2.2kW Air cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD and 4 additional collets (3mm, 4mm, 6mm & 8mm).
- Diameter: 80mm
- Power: 2.2KW
- Current: 10A
- Voltage: 220V
- Frequency: 0-400Hz
- Speed: 10-24000rpm
- Collet Size: ER20
- Cooling: Air Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7002 x 2, C7005 x 2
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 3mm, 4mm, 6mm & 8mm
- Power: 2.2KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 10A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 170 x 125 x 163mm
- Control: By hand via built in control panel or via digital signal from controller board
2.2kW Water Cooled Spindle Kit Specification:
2.2kW Water-cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD, 4 additional collets (3mm, 4mm, 6mm & 8mm), water pump and 6m of water tubing.
- Diameter: 80mm
- Power: 2.2KW
- Current: 10A
- Voltage: 220V
- Frequency: 0-400Hz
- Speed: 10-24000rpm
- Collet Size: ER20
- Cooling: Air Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7002 x 2, C7005 x 2
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 3mm, 4mm, 6mm & 8mm
- Power: 2.2KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 10A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 170 x 125 x 163mm
- Control: By hand via built in control panel or via digital signal from controller board
3kw Air Cooled Spindle Kit:
3kW Air cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD and 4 additional collets (3mm, 4mm, 6mm & 8mm). The only thing you will need to run the spindle is the cable between the spindle and the VFD as well as the power cable to the VFD.
3kW Air-cooled Spindle for CNC machine. This is a 3-phase spindle designed to work with a 3kW or bigger Variable Frequency Drive (VFD). It has a built in ER20 Collet holder which can mount from 1mm to 13mm cutting bit shaft sizes. The rotor of the spindle is mounted with 2 bearings at the bottom of the spindle and 2 bearings at the the top, to ensure a long service life. The spindle is mounted to the gantry of the CNC machine with an aluminium bracket (sold separately). This spindle is perfect for milling and engraving of wood, plastic, foam, aluminium, brass, steel and even stone.
- Diameter: 100mm
- Power: 3KW
- Current: 10A
- Voltage: 220V
- Frequency: 0-300Hz
- Speed: 10-18000rpm
- Collet Size: ER20
- Cooling: Air Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7003 & C7005
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 3mm, 4mm, 6mm & 8mm
-
- Power: 3.7KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 17A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 220 x 120 x 140mm
- Control: By hand via built in control panel or via digital signal from controller board
3kw Water Cooled Spindle Kit:
3kW Water-cooled spindle kit. This kit includes the spindle, aluminium mounting bracket, VFD, 4 additional collets (3mm, 4mm, 6mm & 8mm), water pump and 6m of water tubing. The only thing you will need to run the spindle is the cable between the spindle and the VFD, the power cable to the VFD and a water bath for the water pump.
3kW Water-cooled Spindle for CNC machine. This is a 3-phase spindle designed to work with a 3kW or bigger Variable Frequency Drive (VFD). It has a built in ER20 Collet holder which can mount from 1mm to 13mm cutting bit shaft sizes. The rotor of the spindle is mounted with 2 bearings at the bottom of the spindle and 2 bearings at the the top, to ensure a long service life. The spindle is mounted to the gantry of the CNC machine with an aluminium bracket (sold separately). This spindle is perfect for milling and engraving of wood, plastic, foam, aluminium, brass, steel and even stone.
- Diameter: 100mm
- Power: 3KW
- Current: 10A
- Voltage: 220V
- Frequency: 0-400Hz
- Speed: 10-24000rpm
- Collet Size: ER20
- Cooling: Water Cooled
- Runout: 0.003mm - 0.005mm
- Bearings: C7003 x 2, C7005 x 2
- Collet size in spindle: 1/8' (3.175mm)
- Additional collet sizes: 3mm, 4mm, 6mm & 8mm
-
- Power: 3.7KW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 17A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 220 x 120 x 140mm
- Control: By hand via built in control panel or via digital signal from controller board
3kw Water Cooled ATC Spindle Kit, 50L Compressor, CW3-000 Water Chiller:
3kW Water Cooled Automatic Tool Change (ATC) Spindle for CNC machine. This is a 3-phase spindle designed to work with a 3kW or bigger Variable Frequency Drive (VFD). It is designed for the BT30 tool change handles and comes with 6 x BT30 handle for 3x 3mm & 3x6mm ER20 collet and 1 x pull stud. The ER20 collet sizes range from 1mm to 13mm.
The tool change mechanism is operated pneumatically and an included proximity sensor is to be mounted at the back of the spindle to monitor if the ATC mechanism is engaged or not.
-
- Diameter: 100mm
- Power: 3kW
- Voltage: 220V
- Rated frequency: 400Hz
- Maximum frequency: 1200Hz
- Number of poles: 8
- Rated speed: 6000rpm (@ 400Hz)
- ATC Handle: BT30
- Collet Size: ER20
- Cooling: Water Cooled
- Runout: 0.003mm - 0.005mm
- Brand: Lusintun
- Power: 3.7kW
- Input Voltage: 220V AC (Single Phase)
- Output Voltage: 220V
- Output Current: 17A
- Input Frequency:50-60Hz
- Output Frequency:0-400Hz
- Input phase: Single phase
- Output phase: 3 phase
- Size: 220 x 116 x 140mm
- Control: By hand via built in control panel or via digital signal from controller board
50L Compressor 0.75kw (1Hp):
Table Specifications:
- 50x50x2mm Square Tubing
- Height of table: 900mm
- Table painted black
- Adjustable feet
- Please note the pictures are for illustrative purposes only, final product may vary depending on the type and length of the machine selected
